Project: EVS™ Auto-Cycling Pump Vacuum Press Kit

Project: EVS™
Auto-Cycling Pump
Vacuum Press Kit
* Special Savings! *

See 4 more pictures

Regular Price:

~~$189.95~~

Your Price:

$156.90 ($33.05 Savings!)

Shipping:

Calculated Prior To Checkout

Customer Rating:

Based on 36 Reviews

Product Description

This 31-piece builder's kit includes the core components of the Project: EVS auto-cycling vacuum system. It's designed for woodworkers who already own an electric vacuum pump and want to convert it to a system that cycles on and off automatically.

Project EVS Picture

The latest revision of the Project: EVS system operates more efficiently than previous versions thanks to a smaller sub-reservoir assembly and an improved manifold design which also makes the system easier to assemble. This new version can be built 30% faster and weighs considerably less. Some additional items will need to be purchased at your local hardware store.

Kit Instructions: Website or PDF Download

This kit does not include a vacuum pump.
Click here for compatibility information if you already have a vacuum pump.

Features:

The EVS kit turns your vacuum pump into a full auto-cycling vacuum press for veneering. The adjustable vacuum controller powers your vacuum pump only when a pressure drop is detected.
Integrated Mac valve and sub-reservoir prevent motor burnout by releasing back-pressure on the pump when the desired vacuum level is achieved.
This kit saves money. If you already have a vacuum pump, a complete vacuum press can be up and running for under $200.
Space-saving, do-it-yourself design and free assembly instuctions (available online) make it easy to get your press running quickly.
With the optional vacuum clamping kit, the EVS system can be used to hold projects for sanding, routing, carving, and more.

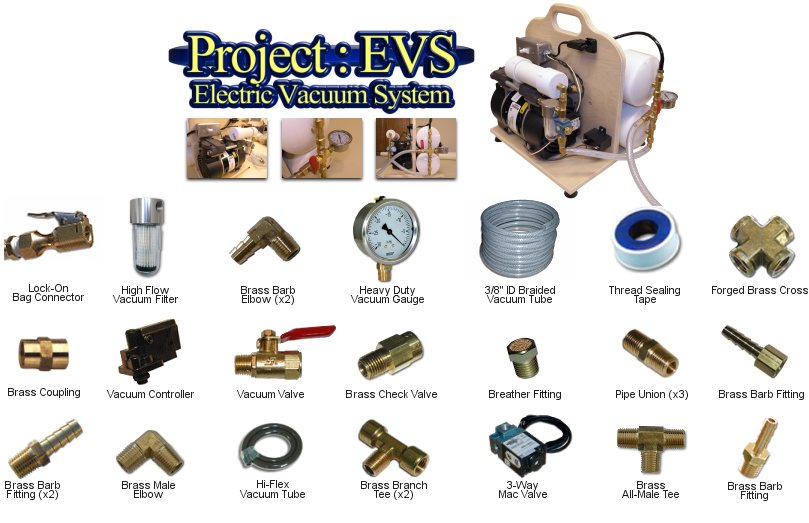

Kit Contents:

1 Vacuum Pressure Controller
1 Heavy Duty Glycerin Filled Vacuum Gauge
1 Vacuum Valve: 1/4" NPT
1 Three-Way Mac Valve: 120VAC, 1/4" NPT
1 Lock-On Vacuum Bag Connector
1 Vacuum Filter (high flow)
1 Hi-Flex Tubing (1/4" ID): 1 ft.
1 Breather Fitting: 1/4" NPT
2 Brass Elbows: 1/4" NPT to 3/8" Barb
1 Roll of Thread Sealing Tape
2 Brass Branch Tee: 1/4" NPT
1 Brass Hex Nipple: 1/4" NPT
2 Brass Pipes: 1/4" NPT x 1.5"L
1 Brass Cross: 1/4" NPT
1 Brass Female Coupler: 1/4" NPT
2 Brass Fittings: 1/4" NPT to 3/8" Hose Barb
1 Brass Fitting: 1/4" NPT to 1/4" Hose Barb
1 Brass Elbow: 1/4" NPT Male to Male
1 Brass Tee - 1/4" NPT (all male)
1 Brass Barb Fitting: 1/8" NPT-F to 1/4" Barb
1 Braided Tubing: 3/8" I.D, 10 ft.
1 Brass Check Valve: Female to Male
2 Screws (attaches vacuum controller to carrier)
1 Braided Tubing: 3/8" I.D, 1 ft.
2 Crimp-On Connectors for Vacuum Controller

Optional Items

Vacuum Damper Option: If your vacuum pump draws more than 4 CFM of air, you will need the vacuum damper to prevent the pump from chattering.

Electrical Option: The 240VAC option will replace the Mac valve only. The vacuum controller included with this kit will handle 120VAC and 240VAC. You will need to purchase a 240VAC vacuum pump from another source since we only offer 120VAC pumps. Please note that, due to liability reasons, we do not support or provide wiring instructions for the 240VAC version.
