Product Information


The Project: EVS-2™ and Project: V4™ vacuum presses can be used for much more than just veneering. With this clamping kit you can use the massive holding power of vacuum to instantly hold work pieces to your bench top for sanding, routing, carving and more. The kit includes a pneumatic latching foot pedal to instantly apply and release vacuum to clamping jigs on the work bench.

Vacuum clamping jigs are required to complete this clamping system. We offer everything needed to make a custom jigs or simply order our very versatile Podz system shown below.

System Compatibility
This kit is an add-on for the Project V4 and EVS-2 vacuum press systems that have the new version of our lock-on connector. It is not designed for use with our Excel vacuum press kits and it has not been tested with any other vacuum press system.

Assembly Instructions: Click here

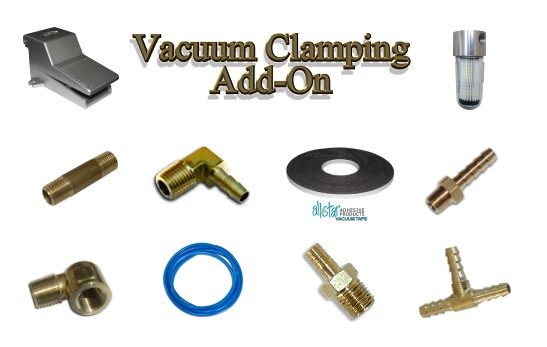

Includes:

  • (1) 3-Way Latching Pneumatic Foot Pedal
  • (1) Vacuum Filter
  • (12') Vacuum Jig Tubing
  • (1) Brass Hex Plug
  • (1) 2" Brass Pipe
  • (1) Brass Barbed Elbow (1/4" NPT to 1/4" Barb)
  • (1) Short Brass Street Elbow
  • (1) Long Brass Street Elbow
  • (1) Brass Vacuum Clamping Fitting (new version*)
  • (1) Roll of Thread Sealing Tape
  • (1) Composite Plastic Baseplate with Filter Support
  • (8) Screws


Podz™ are simple vacuum jigs designed to affordably clamp projects to your bench top. Using the power of your vacuum press and clamping system, the Podz™ 25-piece kit allows you to configure the clamping jigs any way you choose to clamp projects as small as 4" x 4" and as large as 5' x 4'. Purchase additional Podz kits and you can expand the project size to panels of any size!

With the Podz™ system, you can vacuum clamp work pieces to your bench top for routing, sanding, trimming, sawing, carving, dovetailing, staining, planing, scraping, and more.

Each Podz™ clamping jig is made from high density polyethylene and is pre-drilled and pre-tapped. Assembly is quick and simple. Use one Podz jig for small work or link multiple Podz together for larger panels.

A set of four spring-loaded ball valves is included with each Podz™ jig which allows you to pre-arrange each jig on your work bench (with the vacuum source operating). These valves minimize the loss of vacuum pressure and keep the jigs in place until the work piece is ready for clamping.

Kit Contents:

  • (12') Vacuum Jig Tubing
  • (4) Podz Jigs - 4" x 4" HDPE, Pre-Drilled/Pre-Tapped
  • (4) Mach Ball Valves
  • (1) Brass Plug - 1/8" NPT
  • (7) Brass Barb Fittings - 1/8" NPT x 1/4" Barb
  • (8) Removable Podz Gaskets
  • (1) Attachment Fitting



Assembly Time: 10 minutes
Assembly Instructions: Click Here

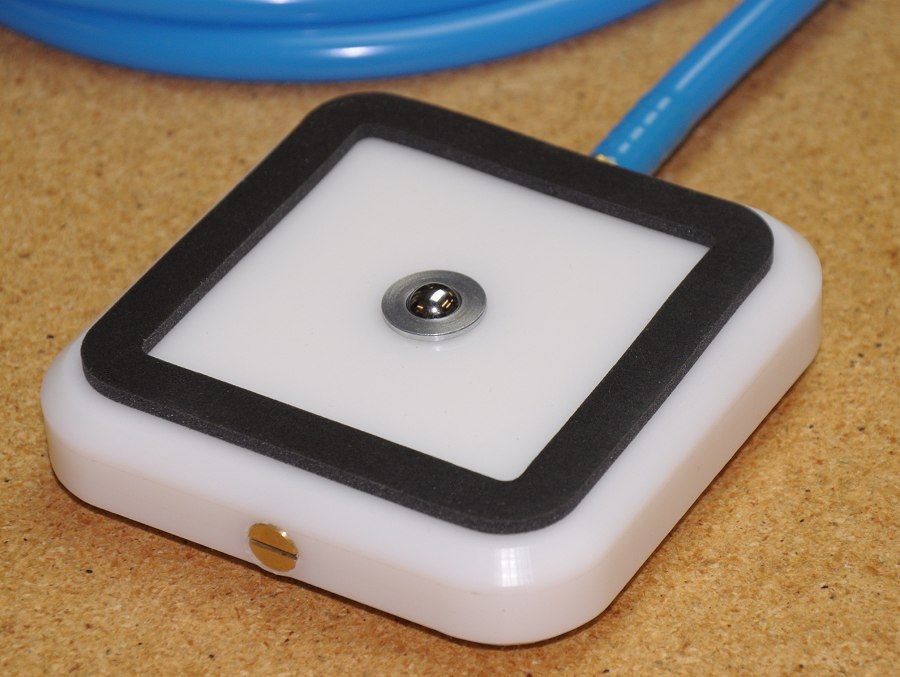

Podz 1





Podz Section View



Notes from Joe:

  • Podz™ clamping jigs work best on non-porous surfaces. This includes your bench top. If you have a porous wood bench top, the vacuum pressure will be diminished. In this case, I recommend applying several coats of oil based polyurethane to seal the pores and allow maximum vacuum clamping pressure.
    _
  • Porous woods such as oak and walnut will allow vacuum pressure to escape from the system. You can choose to allow this air to leak out and clamping pressure will be decreased. Alternatively, you can place blue painter's tape or even contact paper on the clamp side of the work piece. This will create a non-porous surface that can be clamped with vacuum.
    _
  • The Podz™ system is adjustable. You can cut the tubing to any size needed for the scope of your projects. I recommend using a 4-3-4 tube layout. This means four feet of tube from jig #1 to jig #2, three feet of vacuum tube from jig #2 to jig #3, and four feet of vacuum tube from jig#3 to jig#4.
    _
  • A set of four spring-loaded ball valves is included with each Podz™ jig which allows you to pre-arrange each jig on your work bench (while the vacuum source operating). The valves minimize the loss of vacuum pressure and keep the jigs in place until your work piece in set on top.
