Product Description


Project: EVS-2™ Logo

The Project: EVS-2™ is our latest and most comprehensive DIY auto-cycling vacuum press kit. It is a very powerful veneering tool capable of producing over 1,400 lbs per square foot of pressure at sea level when used in its normal operating range. Even more impressive is that the vacuum creates this much pressure on every square foot within the vacuum bag. A simple 2' x 4' panel in a vacuum bag has a total of 11,200 lbs of "pressure" spread across the whole project. It's easy to see why vacuum pressing is considered the ideal method to bond wood veneers to most substrates.

A True Auto-Cycling Vacuum Press

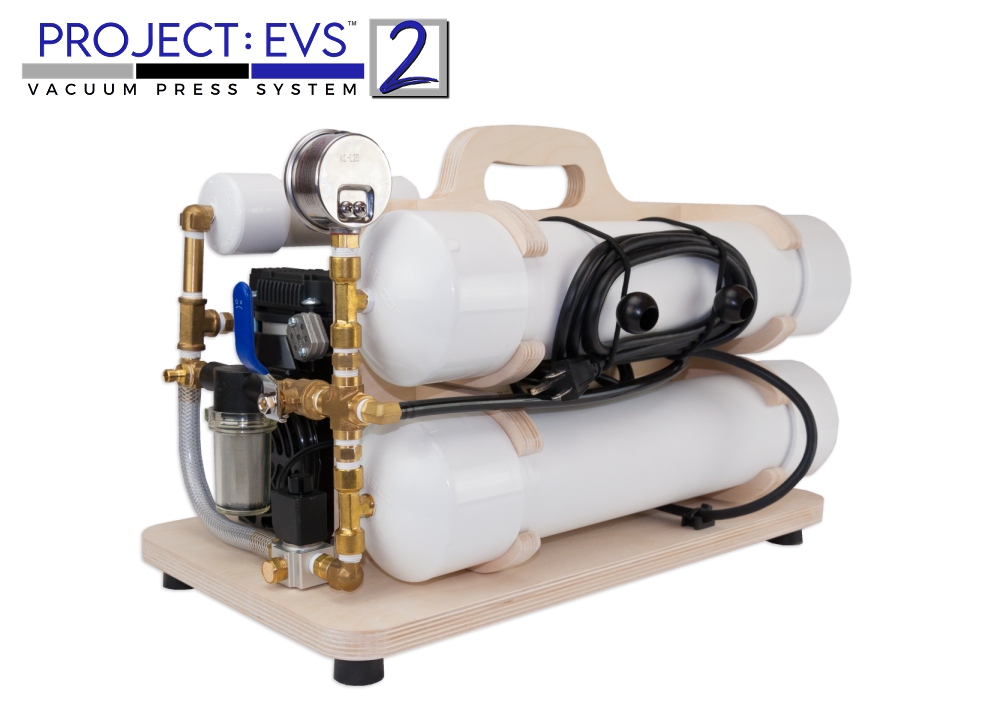

Project: EVS-2™ Vacuum Press KitOnce adequate vacuum is achieved, the Project: EVS-2 system makes no noise and uses no electricity. The system only powers up when the vacuum level has dropped and in most cases, the "on" time is less than a minute.

Designed to Save You Time & Money
Our original EVS kit required dozens of parts from the hardware store including expensive PVC pipe and plywood. Those hardware store parts coupled with a vacuum pump and the original kit would typically cost more than the EVS-2 kit. This kit saves you money and includes all of the pre-cut PVC pieces and plywood carrier parts.

No Additional Parts Needed
Everything you see in the picture is included with the Project: EVS-2™ kit. This includes the plywood carrier which is made from finish-grade birch plywood, as well as a very powerful vacuum pump, quick-connect vacuum fittings, and the PVC parts for the vacuum reservoirs. This 100-piece kit has everything. There are no additional parts needed to build it!

Need Help?Kit Instructions: Click here (free PDF download)
Vacuum Press FAQ:
Click here


Kit Contents

Vacuum Parts
  • Vacuum Pump (3.5 or 5 CFM)
  • Vacuum Controller
  • Solenoid Valve
  • High-Flow Vacuum Filter
  • Braided Vacuum Tube (3/8"ID x 1ft.)
  • Braided Vacuum Tube (3/8"ID x 10 ft.)
  • Stainless Steel Vacuum Gauge
  • 3" x 15" Schedule 40 PVC Pipe (x2)
  • 3" PVC Caps, Tapped (x2)
  • 3" PVC Caps, Un-Tapped (x2)
  • 1-1/2" x 6" Schedule 40 PVC Pipe
  • 1-1/2" PVC Cap, Tapped
  • 1-1/2" PVC Cap, Un-Tapped
  • Vacuum Controller Tube (16")
Brass Fittings
  • Lock-On Connector (x2)
  • Lock-On Plug Fitting
  • Brass Cross Fitting
  • Brass Pipe (2-1/2")
  • Barbed Elbow Fitting
  • Pipe Hex Nipple (x4)
  • Breather Fitting
  • Check Valve (male to male)
  • Branch Tee Fitting (x2)
  • Female Tee Fitting
  • Heavy Duty Vacuum Valve
  • Pipe Elbow (x3)
  • Barbed Straight Fitting (1/4" NPT, x2)
  • Barbed Straight Fitting (1/8" NPT, x2)
  • Barbed Straight Fitting (1/8" NPT-F)
Electrical Parts
  • Electrical Box (pre-drilled)
  • Electrical Box (blank)
  • Electrical Box Cover (pre-drilled)
  • Outlet Cover
  • Combination Switch/Outlet
  • Power Cord (10 ft w/ plug end)
  • Wire (14" w/ connector, x2)
  • Electrical Lever Nut (x2)

Miscellaneous Parts

  • Vacuum Pump Mounting Screw (x4)
  • Reservoir Bracket Screw (x8)
  • Mounting Plate Screw (x2)
  • Carrier Upright Screw (x3)
  • Electrical Box Screw (x4)
  • Rubber Feet (x4)
  • Wire Tie (6", x2)
  • Wire Tie (16")
  • Wire Tie Anchor (x2)
  • Wire Tie Anchor Screw (x2)
  • Bungee Cord (4", x2)
  • Bungee Cord (6")
  • Thread Sealing Tape
  • Self-Threading Inserts (x4)
  • Plywood Carrier (2 pieces)
  • Plywood Reservoir Brackets (x4)
  • Plywood Mounting Plates (2 pieces)
  • Spacer Stick

Project: EVS-2™ Features

  • Project: EVS-2™ Side ViewThere is no need to cut the pump's power cord!
  • The carrier parts made from A-grade, 13-ply birch.
  • The kit is fully adjustable from 10.5" to 25.5" Hg (735 to 1,785 lbs per square foot).
  • A vacuum valve allows you to pre-charge the system with vacuum before attaching the bag.
  • Auto-cycling is energy efficient since the system only runs when additional vacuum is needed.
  • The included quick-disconnects allow easy removal of the vacuum tube for storage.
  • Comprehensive assembly instructions are clearly written so nearly anyone can build this kit.
  • Very quiet operation during the "on" cycle at just 55 dB. Completely silent during the "off" cycle.

Notes from Joe
The new EVS-2™ kit addresses all of the most common inquiries I've received over the last 10+ years about the original EVS kit. This new kit is the result of hundreds of hours of careful thought, relentless design trials, and thorough testing. The assembly instructions are the most extensive I've ever written, and as a result of numerous customer suggestions, the EVS-2 kit has more assembly pictures than any other kit on my site. I wrote the kit instructions using simple terminology and put extra time into making the wiring sections as easy as possible. I think you're going to be impressed.


Project: EVS-2 Options

Vacuum Pump Options

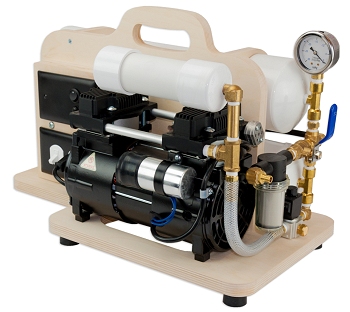

The 3.5 CFM version is suitable for flat panel work in vacuum bags up to 4' x 9' and most curved panels in vacuum bags up to 4' x 4'. The 5.0 CFM version is suitable for flat panel work in vacuum bags up to 4' x 15' or 6' x 10' and most curved panels in vacuum bags up to 4' x 6'.

Continuous Run Optional Add-On Kit
If the Project: EVS-2™ system is used for projects where there is a possibility that the system will cycle on very often, then it may be best to order and install the optional "continuous-run" add-on. The add-on kit includes a few extra pieces and replaces the standard vacuum controller cover plate with one that has been modified to accept the continuous-run switch.

Continuous Run Kit


pg-warning-yellow.jpg WARNING: This product can expose you to chemicals, including lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.




I already own a vacuum pump. Will it work with this kit?
The Project: EVS-2 kit includes a vacuum pump. If you would like to use your own vacuum pump, you may want to consider ordering the original Project: EVS kit. But be sure to check out this link first.

Can I use this kit to upgrade my Excel 3 or Excel 5 system to auto-cycle it?
We have a discounted EVS-2 upgrade kit that allows you to disassemble your Excel 3/5 system and use many of the parts from it.

Do you have Project: EVS-2 kits that are pre-assembled?
I built several of these kits throughout the process of writing the assembly instructions. Most of them have sold but there is one left and available for $25 additional. The remaining unit is a 3 CFM version without the continuous-run option. Let me know if you are interested in this assembled kit before ordering. To safely ship this last system, I will have to remove the pump and some small parts which you will need to re-assemble when the boxes arrive.

How does it work?
A vacuum controller continuously measures the level of vacuum in the system. When additional vacuum is needed, the controller sends power to the vacuum pump and the solenoid valve. Once the set vacuum is achieved, the whole system cycles off. The check valve then holds the vacuum in the reservoirs and the solenoid valve releases back-vacuum at the pump when the system cycles off. This allows the pump to easily restart when additional vacuum is needed. The small sub-reservoir provides "free air" to the pump which allows it to spin up toward full RPM without back-pressure stress thereby reducing wear on the pump's internal components and motor windings.

Is the EVS-2 kit more expensive than a completed original EVS kit?
No! The total cost to build the original EVS kit was around $570. The original EVS kit came with 36 pieces, but the EVS-2 kit has 100 pieces including the pre-cut plywood, PVC pipe, and a very reliable vacuum pump!

What is the difference between this kit and the original EVS kit?
The original Project: EVS kit contains only the bare-bones parts to start building a vacuum press system. The original kit requires you to source various parts from the hardware store such as plywood, electrical boxes, wire, switches, PVC pipe, and more. The EVS-2 kit includes everything you need to build the vacuum press system except the PVC cement.

Where can I find more questions and answers about this kit?
The JoeWoodworker Vacuum Press F.A.Q. answers more than 80 common questions about vacuum press kits.

Why doesn't the kit include PVC cement?
It is very difficult to ship PVC cement due to flammability issues. And since most good hardware stores offer PVC cement at reasonable prices, it seems to be best to leave this part out of the kit.

Do I need a vacuum damper fitting if I order this kit with the 5 CFM vacuum pump?
No. The vacuum damper fitting is not needed with this kit even when ordered with the 5 CFM pump.

How long does it take to assemble the kit?
If you are handy with tools then you can likely assemble the kit in four to six hours.

What tools are required to complete the assembly?
Pliers, screwdriver, wrenches, wire strippers, drill bits, and a few other tools commonly found in a woodworker's shop are required. See the kit instructions for the complete list of tools.

Is there a 220/240v AC version available of this kit?
The EVS-2 kit is only compatible with 120v AC.

Can I use the 5 CFM version of this kit on small vacuum bags?
Absolutely!

Does this kit include a vacuum bag?
None of our kits include a vacuum bag since there are so many sizes and materials from which to choose.

What else will I need to have a complete vacuum pressing system?
You'll only need to order a vacuum bag and breather mesh to complete the system. Then head over to your nearest hardware store for some melamine board to be used as a platen inside the bag.

Does this kit include the lock-on connector that attaches to the vacuum bag?
Yes.

How does my altitude affect the maximum vacuum level of this system?
There is a loss of approximately 1" of Hg for every 1,000 feet above sea level. For example, at 5,000 feet above sea level the most vacuum this system will create is 20.5" of Hg. The generally accepted minimum for vacuum pressing most veneers is 17" of Hg but a few species such as maple and bubinga are best pressed at 21" Hg. Since this system has a maximum vacuum of 25.5" Hg at sea level, it is not suitable for users above 8,000 feet.

Can I order the continuous-run add-on kit at a later time?
Yes. Please contact me for details.

Can I use a vacuum press for clamping boards together face to face?
At sea level, a typical vacuum press can put down the equivalent of 1,785 lbs of pressure per square foot. If the boards are flat, then this is generally considered more than adequate for a project where two sheet materials such as plywood or MDF are being glued together face to face. This also is true for gluing solid wood boards together.

Can I order this kit without the carrier or without the pump?
The EVS-2 kit is sold only as shown. We don't offer a version without the carrier or pump. You may instead want to consider ordering the original Project: EVS kit.

Which vacuum controller comes with this kit?
We offer two versions of the standalone vacuum controller, but the kit always comes with the "type 1" version which is adjustable from 10.5" to 25.5" of Hg. The EVS-2 kit can only be ordered with the type 1 vacuum controller. If your project requires lower vacuum, you will need to order the type II version of the vacuum controller separately.

Why don't you include the assembly instructions with the kit?
It would be costly and wasteful to print copies of the instructions. It's best to use a laptop or tablet to view the kit instructions when assembling the system since it allows you to zoom in on the pictures.

Will this system have enough force to bend strips of wood so I can make bent laminations?
This is a difficult question to answer because it depends on many factors such as thickness, species and grain direction. It will also depend on the radius and complexity of the curves that are being used on the project. The vacuum pump included with this kit generates 25" of Hg at sea level which is equal to 1,750 lbs of clamping pressure per square foot. You will need to decide if that is enough for your bending project.

Why does my system require me to tap on the vacuum controller to make it cycle off?
The issue is not caused by the vacuum controller. It is the effect from another problem. The vacuum pump is being "asked" by the vacuum controller to deliver a higher vacuum than the pump can offer. In this case, the vacuum pump typically has some sort of issue which is preventing it from achieving full vacuum. It may be able to achieve slightly less vacuum than what the controller is asking in order for it to switch off the system. Tapping on it jolts the switch mechanism and causes it to turn off.

The most common cause is a clogged exhaust muffler. The muffler can be easily disassembled, cleaned, and put back into service. Another cause of this issue the breather fitting on the solenoid valve is clogged. This fitting can be cleaned with denatured alcohol and compressed air.
