The 25 lbs size of Ultra-CAT is currently sold out.
We expect more on June 10th.

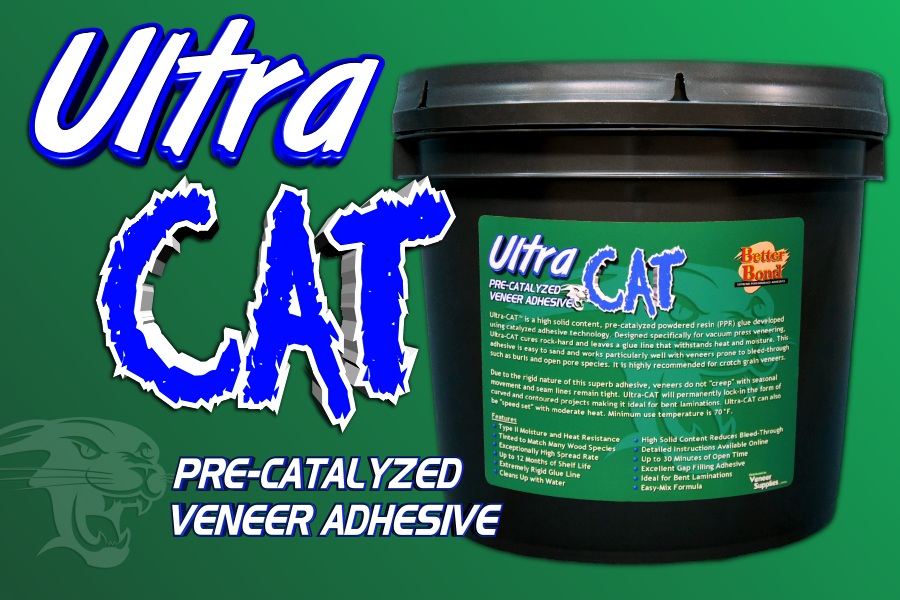

Ultra-CAT™ is a high-solid content, pre-catalyzed powdered urea resin veneer glue with an extra long open time developed using catalyzed adhesive technology.

This adhesive cures rock-hard, so it eliminates veneer creep caused by seasonal humidity changes and prevents joint lines from separating. It works particularly well with veneers that are prone to bleed-through, such as burls and open-pore woods.

Standard cold press adhesives cure by evaporation, whereas Ultra-CAT cures by chemical reaction. This adhesive will permanently lock-in the form of curved and contoured projects, which makes it also suitable for bent laminations such as curved doors, skateboards, and guitars.

Ultra-CAT is a sand-able adhesive and offers Type II moisture and heat resistance.

Those familiar with Cascamite glue will find Ultra-CAT remarkably similar in application and performance. Both use the same catalyst compound and adhesive solids, but in different ratios.

Product Instructions: Click Here  Updated Information
Safety Data Sheet: Click Here


Features

  • Extra Value: One 5-lb container makes approximately 1 gallon of adhesive. This is enough for 200-250 square feet of coverage.
  • Convenience: Mix as little or as much glue as needed for your project.
  • Superb Consistency: The high solid content of Ultra-CAT reduces adhesive bleed-through and maximizes durability.
  • Unsurpassed Bond Strength: Type II moisture and heat resistance allows veneers to be used in unconventional environments.
  • Minimized Spring-Back: Non-evaporative curing process leaves an extremely rigid glue line that practically eliminates spring-back on bent laminations.
  • Extra-Long Open Time: Up to 30 minutes under normal conditions and up to 45 minutes in colder shop environments.
  • Usable Wood Tone: Ultra-CAT is tinted to match most medium to dark wood species.
  • Easy Clean-Up: Glue rollers can be cleaned with water (while glue is wet).
  • Outstanding Sand-Ability: Ultra-CAT will not soften and gum-up sandpaper.

Tips from Joe
Glue RollerThe importance of applying this glue correctly cannot be overstated. Don't make the mistake of using a paint brush or paint roller to apply this adhesive. A dedicated glue roller is the recommended application tool. This suggestion is not a sales tactic! The glue roller we offer is unmistakably the right tool to apply this adhesive.

Ultra-CAT MixerAlso consider getting a "hurricane" mixer with your order. Learn more here. This and the glue roller are well worth the cost, and you'll find both tools very convenient to have on hand if you're working with a high-end adhesive such as Ultra-CAT.


Recommended Uses

  • Acoustic drum construction
  • Exterior wood projects
  • Curved veneer projects
  • Skateboard building
  • Model aircraft construction
  • General purpose wood gluing
  • Crotch grain and other unruly veneers
  • Veneering with thicker (shop sawn) wood veneers
  • Veneer projects that require high heat and moisture resistance

Pricing: 1 lb Container - $16.75        5 lb Pail - $42.50        25 lb Bucket - $151.00
Coverage: 200 to 250 square feet per 5 lbs of powdered adhesive
Typical Shelf Life:
8 months (12 months if unopened)
Minimum Use Temperature:
70° F
Curing Time:
4 to 6 hours at 70° F
Speed Curing:
Some vacuum press users opt to place a heating blanket (set on 'low') over the vacuum bag while the project is being pressed to accelerate the curing of the Ultra-CAT adhesive, or when the minimum use shop temperature can not be achieved. Curing time can be reduced to 2 hours with this method!
Bonus: The 5 lb pail is made from HDPE, so it can be used as a mixing bucket and then be cleaned out for re-use after the adhesive has cured.


Optional: Ultra-CAT Lightening Agent
pg-ultracat-lightener-s.jpgIf you select this option, we will include 8 ounces of lightening powder in a separate container for use as needed in the Ultra-CAT mixture. Simply add this highly effective powder to Ultra-CAT to dramatically lighten the glue-line color. It is ideal for maple, sycamore, ash, and other light woods where a dark glue line would be unacceptable. One container of lightener is enough to make a 5-pound pail of Ultra-CAT adhesive similar to the color of maple. The lightener is inert and has absolutely no effect on the quality of the bond.

To minimize glue-line visibility with most light tone veneers, we suggest a ratio of 1 part of lightener to 10 parts (by weight) of Ultra-CAT adhesive. For medium toned veneers, use less lightener. If you want a dark glue line, Transtints can be used with this adhesive.

Pricing: 1 to 5 lb Pail Treatment - $8.60         25 lb Bucket Treatment - $43.00


Ultra-CAT™ Tip for Skateboard Builders
Skateboard and longboard builders often desire some flexibility in the glue line without sacrificing bond strength or durability. Ultra-CAT may be somewhat rigid for certain types of boards, depending on the thickness and number of material layers. However, it is very easy to make this adhesive more flexible, which is said to allow more "pop" in the skateboard.

Once the Ultra-CAT powder and water have been mixed, the user can add up to 12% (by volume) of Better Bond X-Press™ veneer adhesive to increase the glue line flexibility. Doing so slightly reduces the moisture and heat resistance of the glue line, but not to any great extent. Important: Do not add type II or type I woodworking adhesives to Ultra-CAT.



Questions & Answers

Where can I find a chart that shows all the Better Bond veneer glue differences?
This downloadable adhesive chart shows all key points about each of the Better Bond veneer adhesives and may be helpful when choosing a glue for your next veneering project.

What is the shelf life of this adhesive?
The powdered Ultra-CAT adhesive is will remain usable for 8 months if stored in cool and dry conditions. If left unopened, most users can expect up to 12 months of shelf life. We have heard from customers who have used this adhesive without issue 18 months after purchase.

How can I tell if my PPR glue is past its shelf life?
You will notice that the powder will not mix well with water. It'll be like pouring water into sand.

What is the shelf life of the lightener?
The lightener shelf life is indefinite.

Is this adhesive freeze/thaw stable?
Freezing will not harm this product.

Can this adhesive be used for general purpose woodworking?
Yes. This glue is excellent for standard glue joints, especially since the glue line will have a wood tone.

Can I order just the lightener part?
Yes. Simply type "lightener" into the search box on our site to find it.

What does PPR mean?
Plastic powdered-urea resin.

Can I use this glue on paperbacked veneer?
Yes. Thoroughly scuff the back side of the veneer before application to allow adequate penetration of the adhesive.

Do I need to apply this adhesive to the substrate and to the veneer?
Always apply Ultra-CAT adhesive to the substrate only. Do not apply it to the back of the veneer.

How much pressure is required when using this adhesive in vacuum press?
The ideal vacuum level for Ultra-CAT is 18 to 21" of Hg.

What kind of finishes can be used on a project that has been veneered using this adhesive?
You can use shellac as well as water-based, oil-based, lacquer-based, and alkyd-based stains and top coats. Do not flood the surface with the first coat of finish. Apply a light coat and allow it to dry. Then proceed with heavier coats of finish as needed.

What filler can I use if my project surface has gouges in it?
Wood fillers typically create a non-porous surface. The problem is that water-based adhesives do not bond very well to non-porous surfaces. When the filler area was minimal, I've had success with both Bondo and with Elmer's "Stainable" wood filler. I've also had success with Durham's Rock Hard Water Putty on somewhat larger substrate defects. Be sure to scuff sand the filled areas with 60 or 80 grit paper to get maximum bond strength.

Is Ultra-CAT PPR glue CARB compliant?
There's a lot of gray area here according to our supplier since much depends on your interpretation of the CARB rules. The PPR is a urea formaldehyde adhesive, so if you use it, you are adding urea formaldehyde to the panel, which the CARB ruling does not allow. However, from conferences and the like that my supplier has attended, the rule is directed at the core stock, with the intent of getting panel producers and users to only use core that is not made with UF resins. UF resins have been the choice in binders of engineered core stock for decades. You'll see these compliant core stocks referred to as NAUF (no added urea formaldehyde). ULE (ultra low emitting) UF resins have been developed and can be used, but they have to be certified. Ultra-CAT PPR is not a ULE resin. California's Proposition 65 Warning To California Residents This warning is provided to comply with California's Proposition 65 product labeling law. Each and every product sold by JWW Services Inc., DBA VeneerSupplies.com, may contain chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. JWW Services Inc., DBA VeneerSupplies.com provides this warning based on its knowledge concerning the possible presence of one or more such chemicals, without attempting to evaluate the level of exposure.

Where can I get more information about mixing this glue?
https://www.veneersupplies.com/docs/instructions-ultracat.pdf

What is the cure time for Ultra-CAT veneer glue?
4 - 6 hours @ 75 degrees F
3 - 4 hours @ 95 degrees F
2 - 3 hours @ 120 degrees F

What is the safety and health information on this adhesive?
Health Risk: Carcinogen
For industrial use only.
This resin contains formaldehyde, which is listed by California prop. 65 as causing cancer.

Appearance and odor: tan to brown, free flowing powder that will form a crust on the surface by absorbing moisture from the air. Has a slight chemical odor. Primary routes and exposure: eyes, inhalation, skin contact. Inhalation: dust or vapors can cause irritation. Inhalation may aggravate colds, allergies, asthma, emphysema and psoriasis. Material vapors may be carcinogenic. See chronic hazards in this section. Skin contact: repeated skin contact can cause sensitization and dermatitis due to formaldehyde. Eye contact: if powder gets into eyes, it can cause severe irritation. Ingestion: ingestion of materials is not expected to occur during the normal use of this product. If ingested it may cause stomach and intestinal irritation, vomiting, diarrhea, sweating, weakness, and headache. Avoid swallowing if a large amount of material gets into the mouth. Chronic hazards: formaldehyde is listed as a human carcinogen, group 1, by IARC and OSHA and a suspected carcinogen by NTP. Evidence is based upon animal testing, and data on human is inadequate. Formaldehyde vapors have been found to be carcinogenic to animals. Store in a well-ventilated place. Keep cool. Dispose of contents/ container to an approved waste disposal plant.

Certain products offered on our website, including Ultra-CAT PPR adhesive, may contain urea formaldehyde and will consequently release small quantities of this and other harmful chemicals. The buyer acknowledges that he or she is aware of this exposure and will give appropriate notices and warnings to their customers and ultimate consumers of the fact that these goods contain urea formaldehyde, and will provide instructions that minimize their exposure to this chemical. There may be other chemicals used in the manufacturing process of certain products, which also may have harmful effects on humans and animals. The buyer should consult the Material Safety Data sheets available on our website to determine the hazards and sustain preventive measures.
