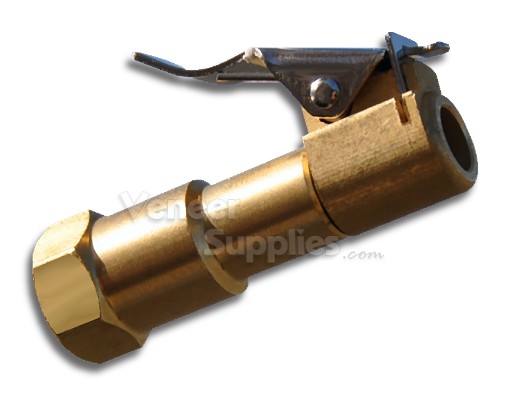

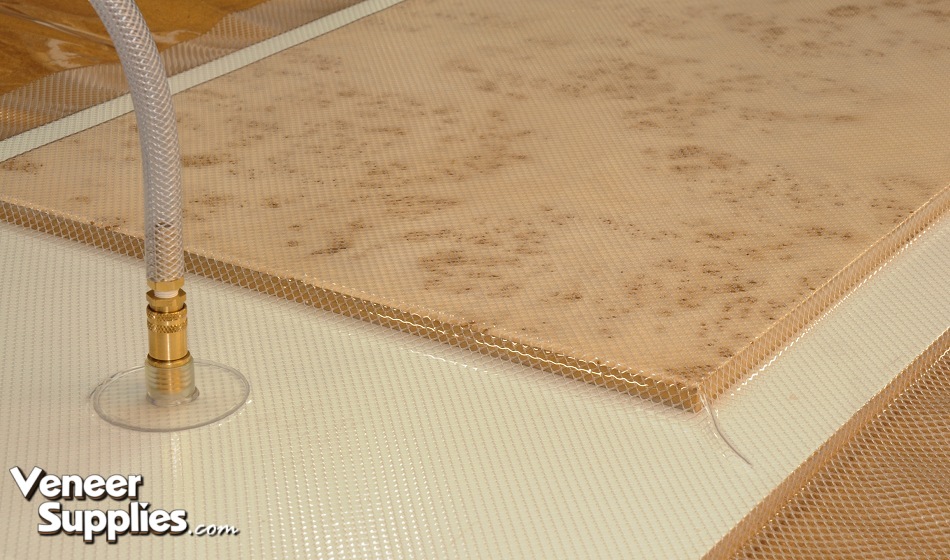

I have found only one connector that works perfectly for vacuum pressure. This solid brass vacuum bag connector locks on to the vacuum bag stem with a strong spring-loaded clip and features a soft cast O-ring which makes a leak-proof connection. This nicely machined connector has a 1/4" NPT-female thread. All lock-on connectors now ship with a special large bore to allow maximum vacuum flow.
To use the lock-on connector with your vacuum system, you will need a brass barbed fitting. Select the barb fitting option above to match the inside diameter of your vacuum hose/tube. The barbed fitting is the critical piece that allows the lock-on connector to attach to your vacuum supply tube.
The locking side of this connector is compatible with the following items:
Note from Joe:
All of our vacuum press kits include this lock-on connector. There is no need to purchase this item if you are also ordering a vacuum press kit.
How do I use the lock-on connector with a vinyl vacuum bag from another company?
The existing vacuum stem will most likely have to be removed. Then our flush-mount vacuum stem can be adhered to your vinyl vacuum bag. Our stem kit includes a brass fitting designed to work with the lock-on connector.
How do I use the lock-on connector with a vacuum press made by another company?
You will need to remove any existing fitting on the end of the vacuum tube. Then measure the inside diameter the vacuum tube and select a brass barbed fitting from our options shown above. The barbed fitting is the critical piece that allows the lock-on connector to attach to your vacuum supply tube.
To what thread type does the lock-on connector attach?
The lock-on connector is designed to work with what is often called a "Schrader" thread. This thread is found on all of our vacuum bags and vacuum clamping fittings. It is the same thread found on bicycle and car tires. The external thread size of a Schrader fitting is 0.305 inches outer diameter by 32 threads per inch (TPI), and it has a thread root diameter of 0.302 inches outer diameter.
What is the thread type on the non-connection side of the lock-on connector?
The thread on the back end of the fitting is 1/4" NPT.
Other than the lock-on connector, what else do I need to connect my vacuum pump to a vacuum bag?
If you have only a vacuum pump then this lock on connector is not the right thing to buy. Instead you need to order a vacuum press kit. The connector is included with all of our vacuum press kits. We offer the CRS and EVS vacuum press kits for users that already have a vacuum pump.
Does the vacuum bag have to stay connected to the vacuum press after full vacuum is achieved?
Yes because a perfect seal on a vacuum bag is virtually impossible. Here are some things to consider.
If the vacuum system is disconnected from the bag, you won't know if there is a leak because there is no vacuum gauge on the bag itself. If the bag is connected to a vacuum press system, you can easily see the vacuum level by looking at the gauge on the vacuum press. The vacuum inside the system is the same amount of vacuum inside the bag. If your vacuum press cycles on and off too frequently during a project pressing, you'll know there is a leak and if you can fix it. However if you can't fix the leak, at least the vacuum system will keep manage the vacuum in the bag until the panel is finished.
