It's not uncommon to find bark patches and other voids in burl veneer. This tool allows the user to easily punch out the defect and replace it with a reciprocal patch. A tremendous amount of thought and experience led to the unique design and machining of this highly sought-after hand tool. Each tool begins as a solid billet of D2 ool steel and undergoes a multipass machining process on a specialized CNC lathe and machining center. When the machining is complete, the cutting head is heat treated and hardened. No finer veneer punch has ever been made!

The simplicity of this heavy duty tool is what makes it a true pleasure to use. First, use the tool to punch out the void or inclusion in the veneer. Then align the tool to the grain of the replacement veneer (preferably an off-cut from the same sheet) and punch out the patch. Set the patch into the punched hole in the good veneer sheet and apply a small piece of veneer tape to hold it in place while being pressed. Excellent for use with all burl species. Not recommended for veneers exceeding 1/42" thick. Learn more about dealing with veneer defects by clicking here.

If you are familiar with traditional veneer punches, you know they have a tendency to blow out the surrounding veneer. This can only be minimized by applying masking tape to the veneer face which holds the veneer tight as the pressure of the punch presses downward and outward. In its very essence, that style of tool is destined to create problems. With the help of a master tool maker and several fine woodworkers around the country, a new design was created with a simple change that makes a huge difference. Unlike traditional punches, this tool has the bevel on the inside. This practically eliminates any external splitting and with this updated design, the pressure of the bevel is inward toward to the patch piece. A veneer punch like this is simple, effective, and long over due.

Features

• Precision machined cutting head of solid D2 tool steel
• Cutting edge hardened to Rockwell 43
• Irregular (cloud-like) profile minimizes patch visibility
• Stainless steel 1/4-20 threaded stud attaches cutting head to handle
• Exclusive inverted grind eliminates outside veneer splitting
• Fully lacquered, solid brass handle to prevent tarnishing (handle is 4.25" long)
• Curved Nylatron™ striking tip for even strike force distribution
• 21° bevel for clean cuts with no tear-out
• Rubberized foam center platen secures veneer for a clean cut and easy patch removal

Individual Sizes Available
(includes brass handle)

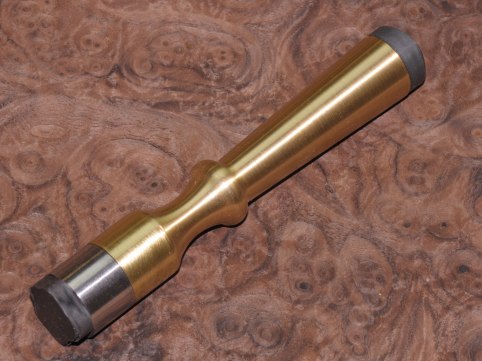

• Small Cutting Head - 5/8"

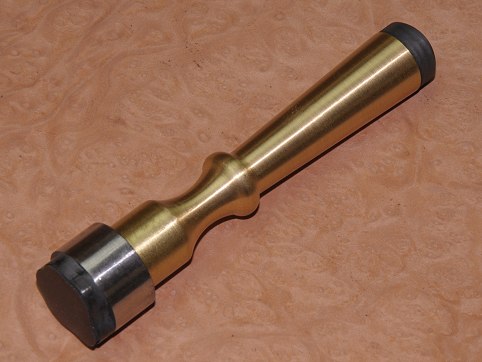

• Medium Cutting Head - 1"

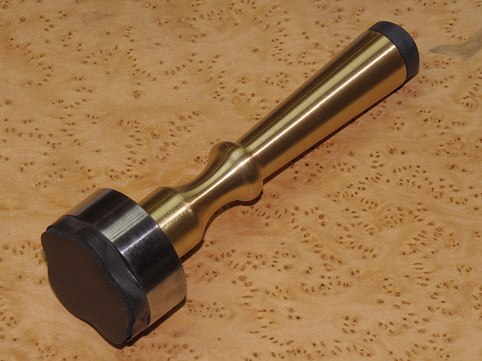

• Large Cutting Head - 1 3/8"

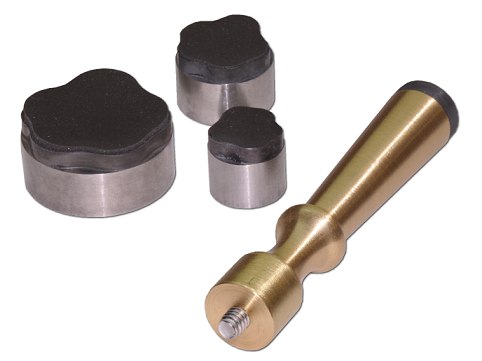

Combo Kit Includes Three Cutting Heads (Save $50 !)

• One brass handle
• Small Cutting Head - 5/8"
• Medium Cutting Head - 1"
• Large Cutting Head - 1 3/8"

We highly suggest using a spritz of Super Soft 2™ veneer softener a minute or two before punching out a veneer patch. This will make the cut clean and easy.
