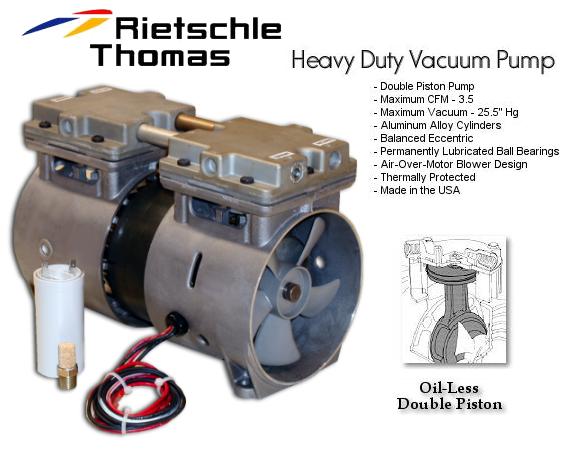

Vacuum Pump - Rietschle Thomas 3.15 CFM
120 VAC
Condition: Rebuilt
* Special Savings! *

two

enlarge

Regular Price:
$159.00
Your Price:
$119.00 ($40.00 Savings!)
Shipping:
Calculated at checkout
Current Stock:
14
Mounting Screws:
Quantity:

Product Description

Rietschle Thomas is the leading manufacturer of commercial vacuum pumps. This heavy duty double piston vacuum pump is ideal for vacuum bags and bending/laminating veneer over odd shaped forms. These are also superb for vacuum clamping bench work and vacuuming chucking lathe pieces.

Please Note

  1. These pumps are rebuilt by Thomas Pumps to like-new efficiency. However, they are a bit dirty.
  2. You'll also notice that this vacuum pump does not have fan guards. It is your responsibility to adequately cover the blades for safety reasons.
  3. The pnuematic and electrical information for this pump can be found by clicking here.

pg-evs-compatible.gifSpecifications

  • Design: Oil-less Double Piston
  • Power Requirement: 120 VAC
  • Start-Up Amps: 9.7 (no relay required when used with the Project: EVS kit)
  • Run Amps: 5.5
  • Maximum Vacuum: 24" Hg
  • Maximum Bag Pressure: 1700 lbs/sqr ft
  • Air Evacuation: 3.15 CFM
  • Port Size: 1/4 NPT
  • Blower Design: Air-Over-Motor
  • Capacitor: Included
  • Muffler: Included
  • Construction: Permanently Lubricated Ball Bearings
  • Cylinder: Aluminum Alloy
  • Weight: 18 lbs (approximately)

Features

  • Flow-through ventilation - provides superior cooling and low discharge air temperature
  • Long-life impregnated cylinder is hard coated with aluminum alloy for greater durability
  • High-flow exhaust muffler included
  • Mounts with four 1/4-20 x 1" machine screws (optional)
  • Permanently lubricated ball bearing construction - offers a long service-free life in continuous duty applications
  • Balanced eccentric - provides smooth, low-vibration operation
  • Thermally protected motor made in the USA

Additional Notes

  • The mounting screw option includes four 1/4-20 x 1" machine screws

Write your own product review

Product Reviews

  1. Budget Buyer's Pump

    Review by N. Culpepper
    Rating:

    I'm retired and on a fixed income so I have to be careful with my funds and I dont always get the best or newest tools. My friend recommended this pump since he owns one. The reviews shown here are all good one and mine is not much different. The vacuum pump is made by Thomas Vacuum Pumps and the rebuild sticker on it indicated a date of just a few weeks ago. The product information for this pump says they are a little dirty but mine looks almost new. For $120 bucks, I dont think I could have found a better and more reliable pump.

  2. This Pump is Better Than I Expected

    Review by Nicolas S.
    Rating:

    I've been looking for a pump like this for a year. Everywhere its $300 or more. Even salvage companies are asking $160 to $180 for this pump (same specs!). I ordered one from Veneersupplies and built it into my pressing system and then I took it to my local woodworking club. Before I knew it, everyone was asking about my system and I told everyone how great of an experience I had with this website. I live in Oregon so I thought the shipping costs were going to be high but I found the rates here to be excellent. My pump shipped on the same day that I ordered it.

  3. Save time -- buy from Joe

    Review by Robert Edney
    Rating:

    I initially built one of the compressor run pumps (venturi type) from Joe's plans, using parts I ordered here. Worked exactly as advertised. My compressor, however, is noisy and draws fairly high amperage. I decided to try one of these rebuilt pumps and it was a great move. Quiet, uses a lot less power than the compressor, easy to set-up, etc. Joe's plans are great, his prices are fair and I've no idea how he ships so quickly! It may sound like I'm his brother-in-law, but I'm not, just a very satisfied customer impressed with a genuinely well-run business.

  4. Rebuilt Thomas Vacuum Pump

    Review by John Makar
    Rating:

    Consider carefully before you buy. I live at an altitude of 6,000 ft in Colorado. Max rated Hg pull on this pump is 24"Hg. Subtract an inch for each 1,000 ft of altitude and you are down to around 18"Hg pull. If you use this pump in the EVS design in that situation, your low vacuum pressure is going to be in the range of 14"Hg - on the low side of the pressure you may want for veneering.

    I have found that this pump actually performs better than that, depending on some things. In cold air, such as my unheated shop in winter, I have to run this thing in continuous mode to get the vacuum I need. In that situation I am getting 17"Hg to 19"Hg consistently. I tend to avoid that situation, because in that temperature range almost all glues start doing funky things.

    In warmer air, I can get up to +20"Hg pull, and in that situation I can run fairly reliably in auto-cycling mode with some very long intervals between on/off - much better than the 30 minutes JWW cites as normal. Above 70degrees F, this pump has pulled better than 21"Hg, which in theory probably shouldn't happen.

    Same pump, same system. The pump is rated for continuous run, and probably has many 100s of hours on the life in that mode. If you plan to use this pump above 5,000 ft elevation, plan on using it at least part-time in continuous mode. I did not do a dual wiring setup. I calibrated the vacuum controller in warm air for a +19"Hg pull, and when it doesn't achieve it, it simply runs continuously.

  5. Perfect for my vacuum system

    Review by Jack Himmelman
    Rating:

    Being a budding woodworker means I'm on a budget so I needed to be cautious about the total price of my vacuum system. This pump worked out great because its not too expensive and it pulls a fast vacuum. The pump includes the muffler and the capacitor so you just need the EvS kit with it to get your press going. I received my order promptly and Joe was very helpful with my questions before and after ordering. I will buy from here again.

  6. Everything Went Together Great

    Review by Brad Strong
    Rating:

    I purchased this pump to use with the Project CRS Continuous Run Pump Vacuum Press Kit. Everything went together great. It pulls down my 2' x 6' bag very quickly. It seems to be an excellent quality pump and it saved me some money.

  7. This Pump Is So Sweet

    Review by Rick Lowell
    Rating:

    This pump is so sweet, I came back for a second one to run a dula pump vacuum press system. As always, Joe's customer service, shipping, and prices are impeccable. If you are looking to save a few bucks, this pump is perfect. It runs quietly and without much vibration.

  8. I Doubt This Can Get Any Better

    Review by Mike Lowthrop
    Rating:

    I bought this pump to go with the vacuum press kit. With Joe's instructions, the kit assembled easily and the pump runs perfectly. I thought about buying a brand new pump but I decided to save some money and go with this one. I'm very happy with my choice. The pump runs cool and pulls a very fast vacuum. Overall, I doubt this could get any better.

  9. It's A Great Performer

    Review by Dave Skowron
    Rating:

    I rely on a vacuum system for my livelyhood. I had one and it worked out ok, but it was a little weak. I use it exclusively as a clamping system, not a veneering system. I had decided to get a new one and did a little searching on the web. I was about to bid on a pump on eBay until I read the information here on Joe's site. I decided to get his rebuilt Thomas pump and one of the kits he offers. I couldn't be happier with that decision. After spending an additional 20 bucks or so at a hardware store to get the things I needed to make it work in my specific application, this system has perfomred so much better than I ever expected. It's a great performer and has added a little boost to my productivity. Those of you in business for yourself will agree that every minute saved is a few more pennies in the paycheck. Thanks Joe, for a great product. It's well thought out and priced at half what I paid for a smaller 1/8" system.

    Dave Skowron
    Red Bear Trading Company
    RedBearTrading.com

  10. I Couldn't Be Happier

    Review by Steve Rozmiarek
    Rating:

    Excellent value! I bought the works from Joe, and couldn't be happier! The pump is quiet and fast, the bags quality is awsome and the parts kit made it all easy to put together. I was pressing veneer in one weekend, for a fraction of what the others charge, plus I think my system is much better quality then most of the pre assembled systems on the market. Thanks Joe!

  11. What A Fantastic Deal

    Review by Fred Jensen
    Rating:

    I purchased one of these rebuilt pumps thinking it was a good deal. WRONG!!! It was a fantastic deal. The pump ordered along with a builder's kit arrived on schedule and was packed very carefully. All items were there. I was able to build the initial model up to the point of testing for leaks and adjusting the vacuum controller in about four hours. The unit is really quiet and very reliable. I will be spending more time refining the platform and support structure and doing some other modifications to suit several different applications. The point is though, that for around 350.00 and a few hours time invested, I have a working useable vacuum system that would rival almost any professionally built vacuum press system on the market and at an unbelievably affordable price.

  12. Service Is Wonderful

    Review by Richard Meyer
    Rating:

    Joe, Service is wonderful, ordered on Thursday and received on next Monday. Assembled pump using details from several pumps shown on web site and some of my own ideas. Works GREAT! Thanks for your quick service. Will be placing more orders soon. Dick

Warranty Information

This product is warranted by VeneerSupplies.com to perform as described for a period of 90 days. Please contact us for details.
